Civil & sitework

From grading plan to bid, the same day.

Upload the grading plan PDF. Foreman reads the spot grades and contours, builds the site in 3D, and splits the cut and fill by paving, building pads and landscape. It measures the asphalt and curb on the same sheet.

Get started Open Takeoff Studio
22-building apartment site · 7.96 acres

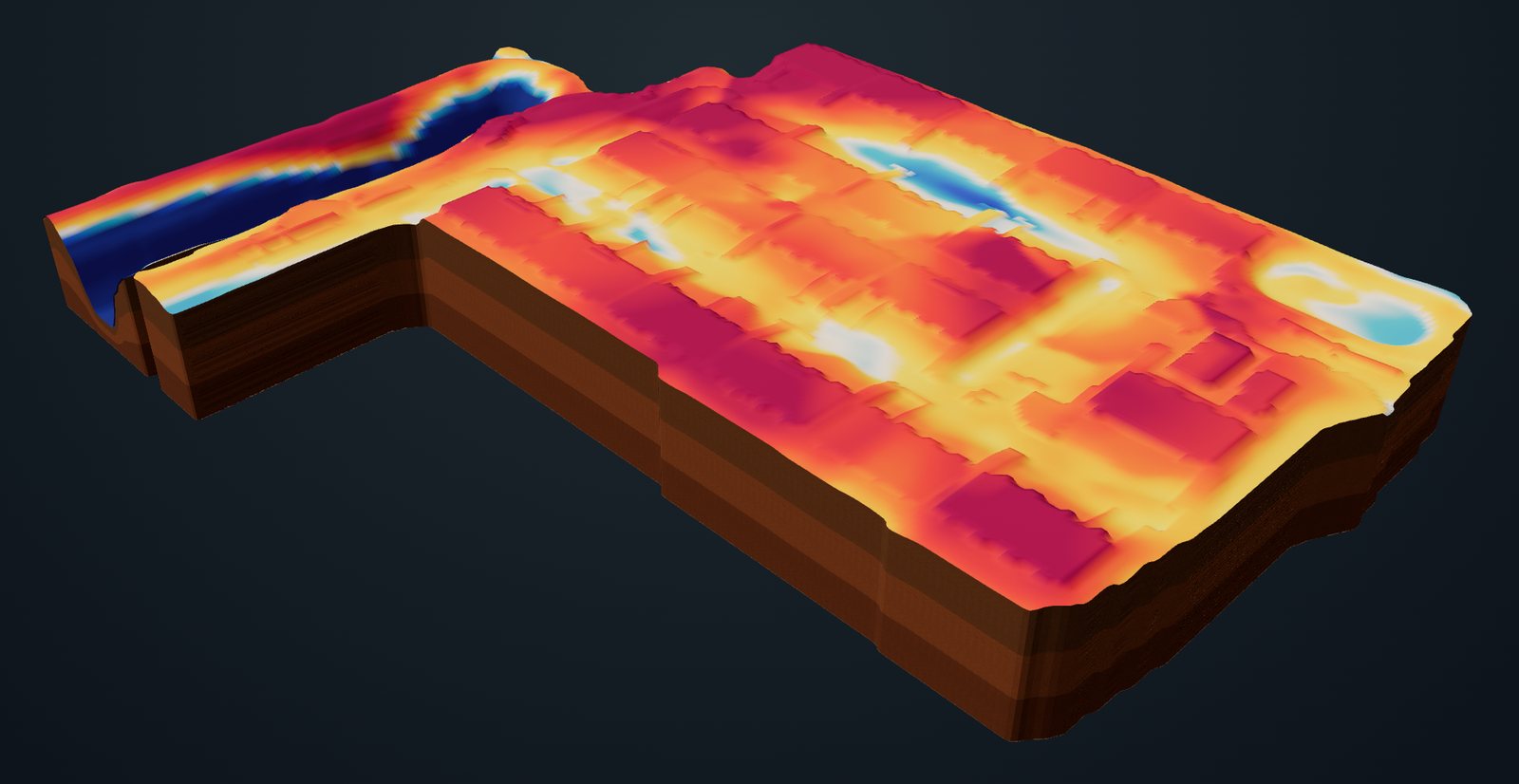

3D model of the finished subgrade colored by cut and fill

7,736 CYCut
18,510 CYFill
13,551 CYNet import
1,210Truck loads

It reads the grading plan.

Spot grades, contours, finished floors and the engineer's shading come straight off the sheet. No tracing contours, no typing in elevations.

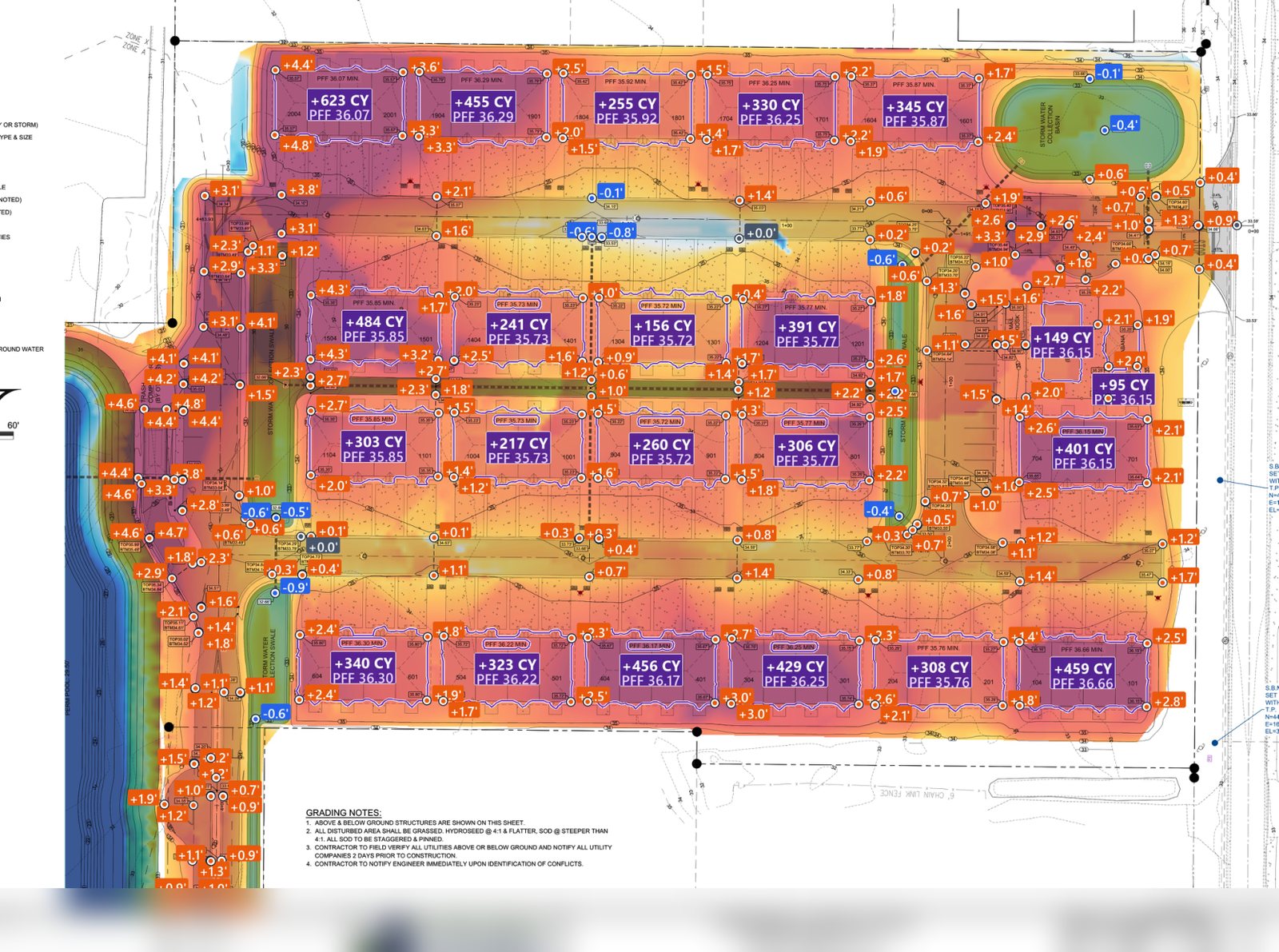

Cut and fill heat map on the grading plan, with every spot grade and the cubic yards on each building pad
Each tag is a spot grade read off the sheet, with the fill or cut at that point. Each pad shows its finished floor and cubic yards.
  • Existing and proposed surfacesBuilt from the contours and spot grades printed on the plan.
  • Finished floorsEach building pad's finished floor comes from its label.
  • Paving, pads and landscapeRead from the engineer's shading. Fix any area with one click.
  • Subgrade or finished gradeSet your paving, pad and topsoil sections and your shrink and swell.

Asphalt, concrete, curb and gutter.

Ask for the paving and Foreman traces it on the sheet: asphalt as an area, curb and gutter as lines, the islands cut out. You see exactly what it measured.

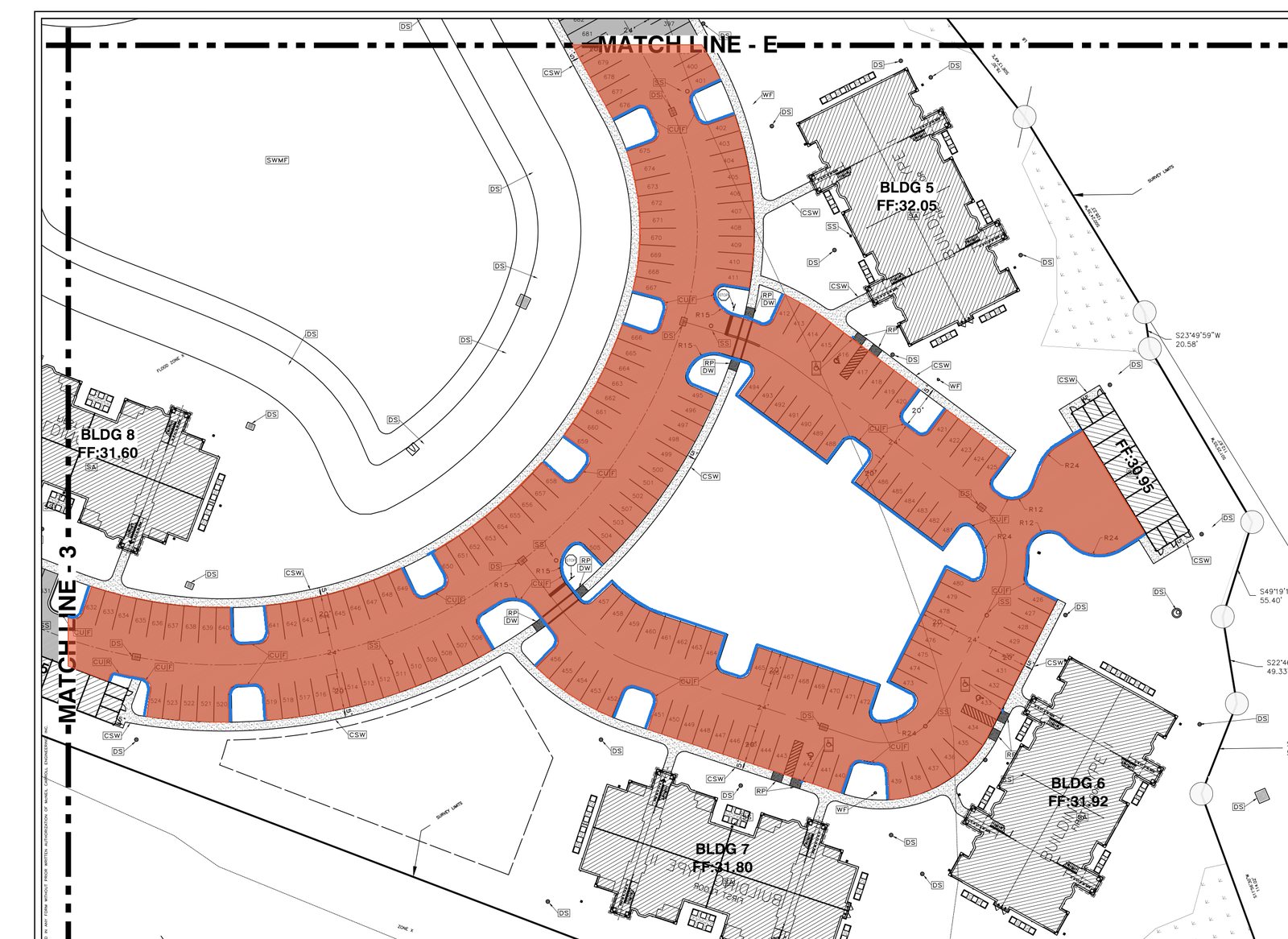

Site layout plan with the asphalt drive aisles and parking filled in orange and every curb and gutter edge traced in blue
62,898 SFAsphalt paving · 6,989 SY
1,783 LFType F curb and gutter

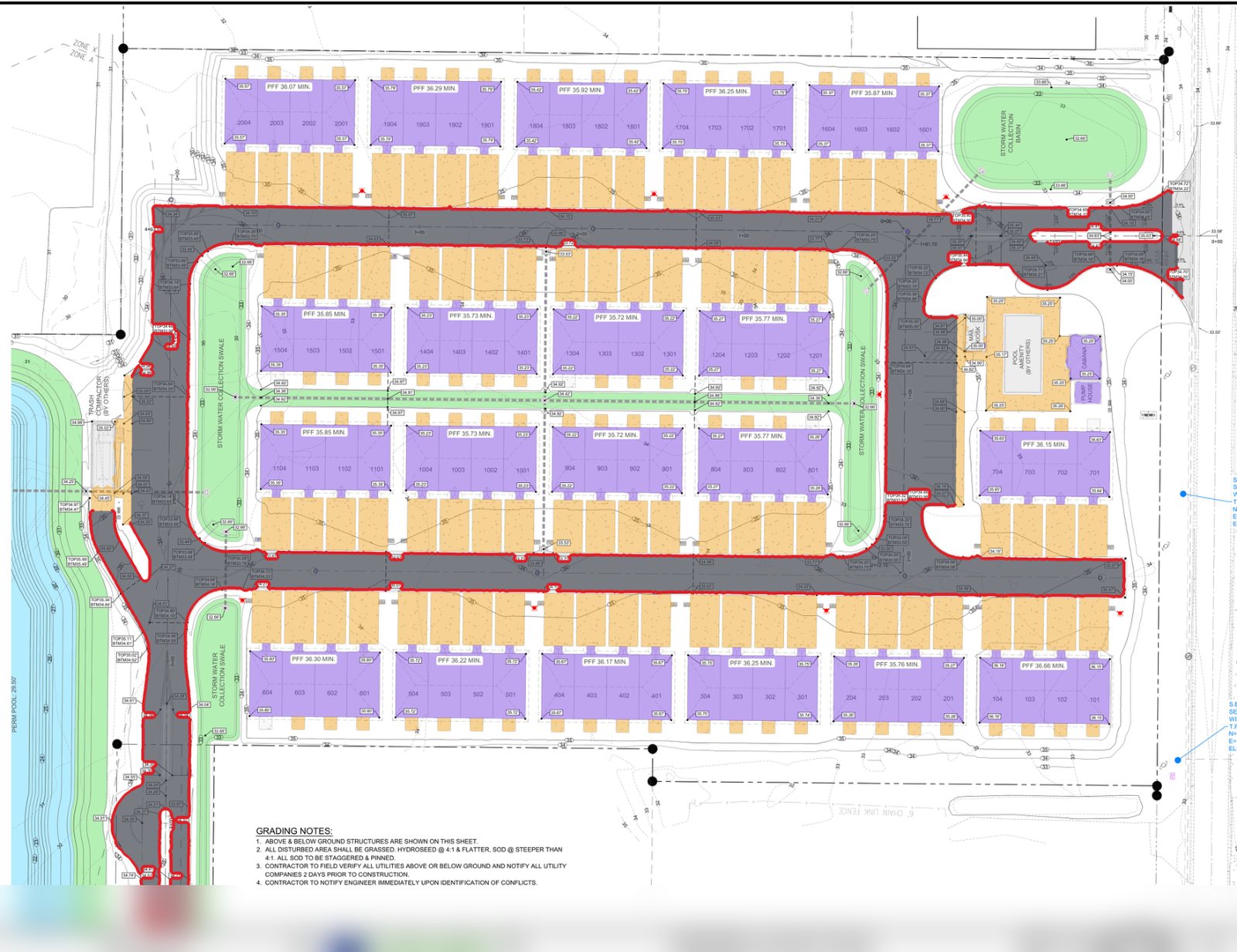

Paving takeoff on a grading plan: asphalt, Type F curb, building pads, concrete parking and walks, and swales
Another site: 5,370 SY of asphalt, 4,066 LF of Type F curb and gutter, 54,684 SF of concrete parking and walks, and 22 building pads on one sheet.

Quantities split the way you price.

Paving, building pads and landscape each get their own cut and fill, every pad is listed, and the topsoil strip, respread and truck loads are worked out.

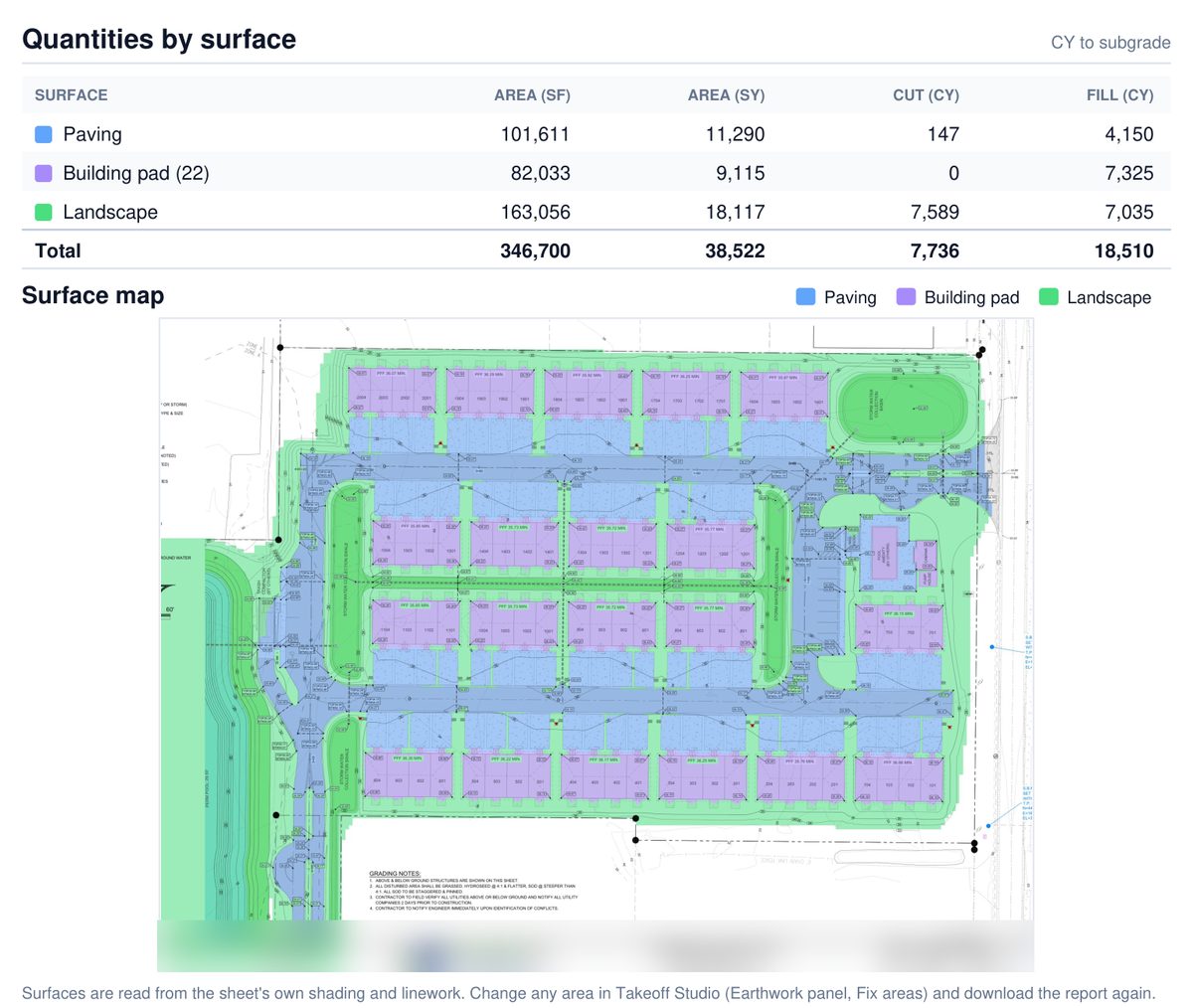

Quantities by surface and the surface map: paving, building pads and landscape
Quantities by surface, and the map they come from.

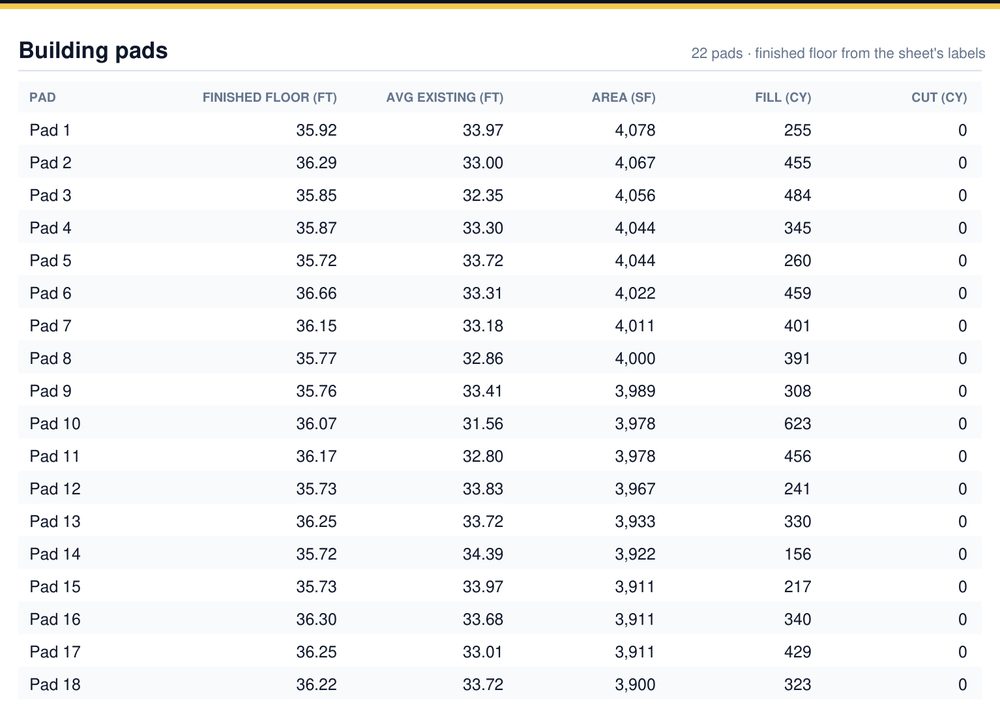

Table of the 22 building pads with finished floor, existing grade, area and fill
Every pad with its finished floor, existing grade, area and fill.

Reports and bids.

Download the Earthwork Report in one click, or put the takeoff into a bid on your letterhead with the schedule, the mass haul and the RFIs Foreman found on the drawings.

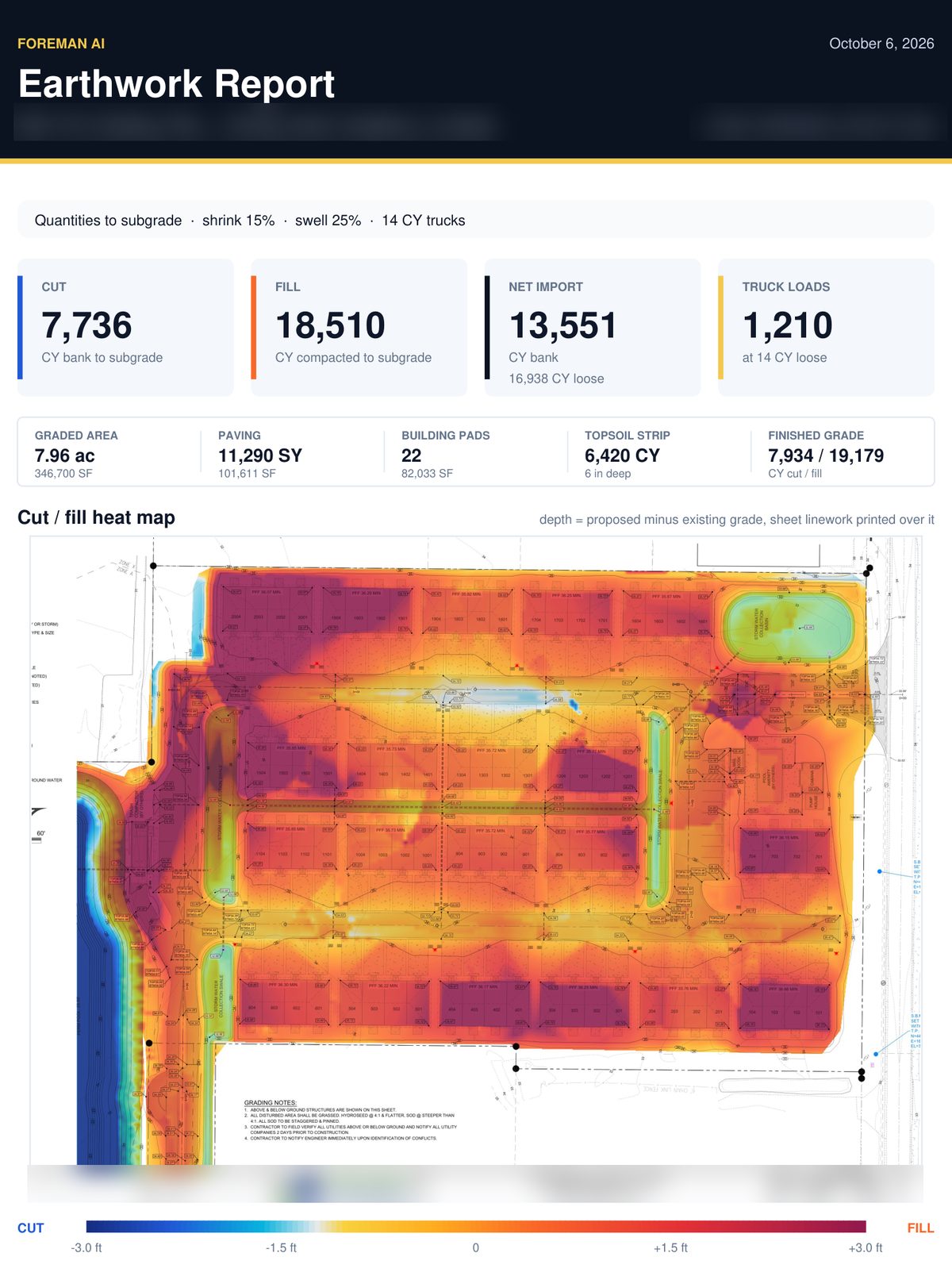

Earthwork Report, page 1: cut, fill, net import and truck loads, then the heat map on the grading plan
Earthwork Report, page 1.

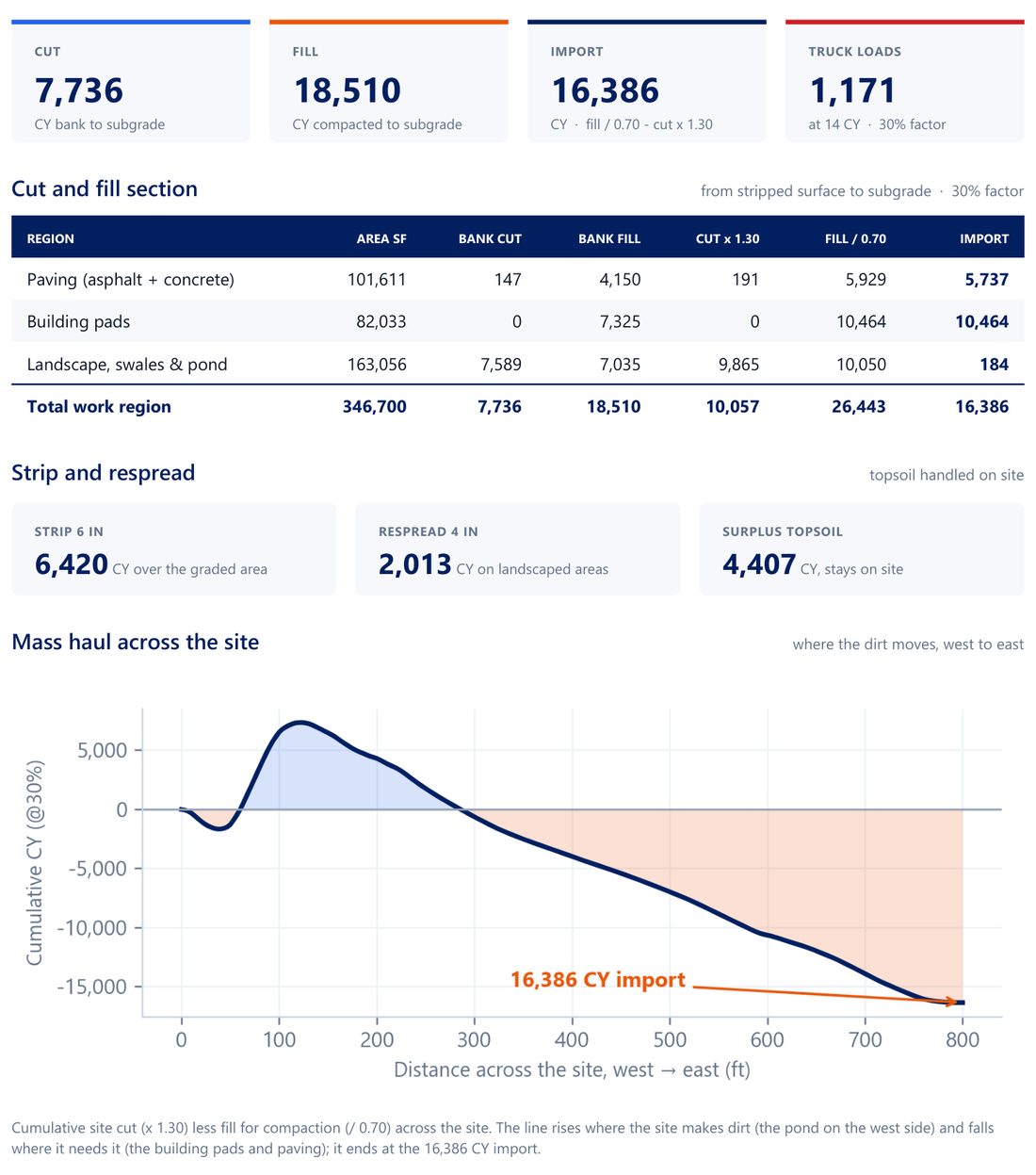

Earthwork page of a bid proposal: cut and fill by surface, import, truck loads, topsoil and mass haul
Earthwork in a bid proposal, run at a 30% factor, with the mass haul across the site.

How it works

  1. Upload the plans

    A vector PDF of the grading plan, with existing grades and proposed contours or spot grades, works best.

  2. Ask for the cut and fill

    Tell Foreman "run cut and fill on the grading plan," or open Takeoff Studio, switch to Civil and pick Cut / Fill.

  3. Check it

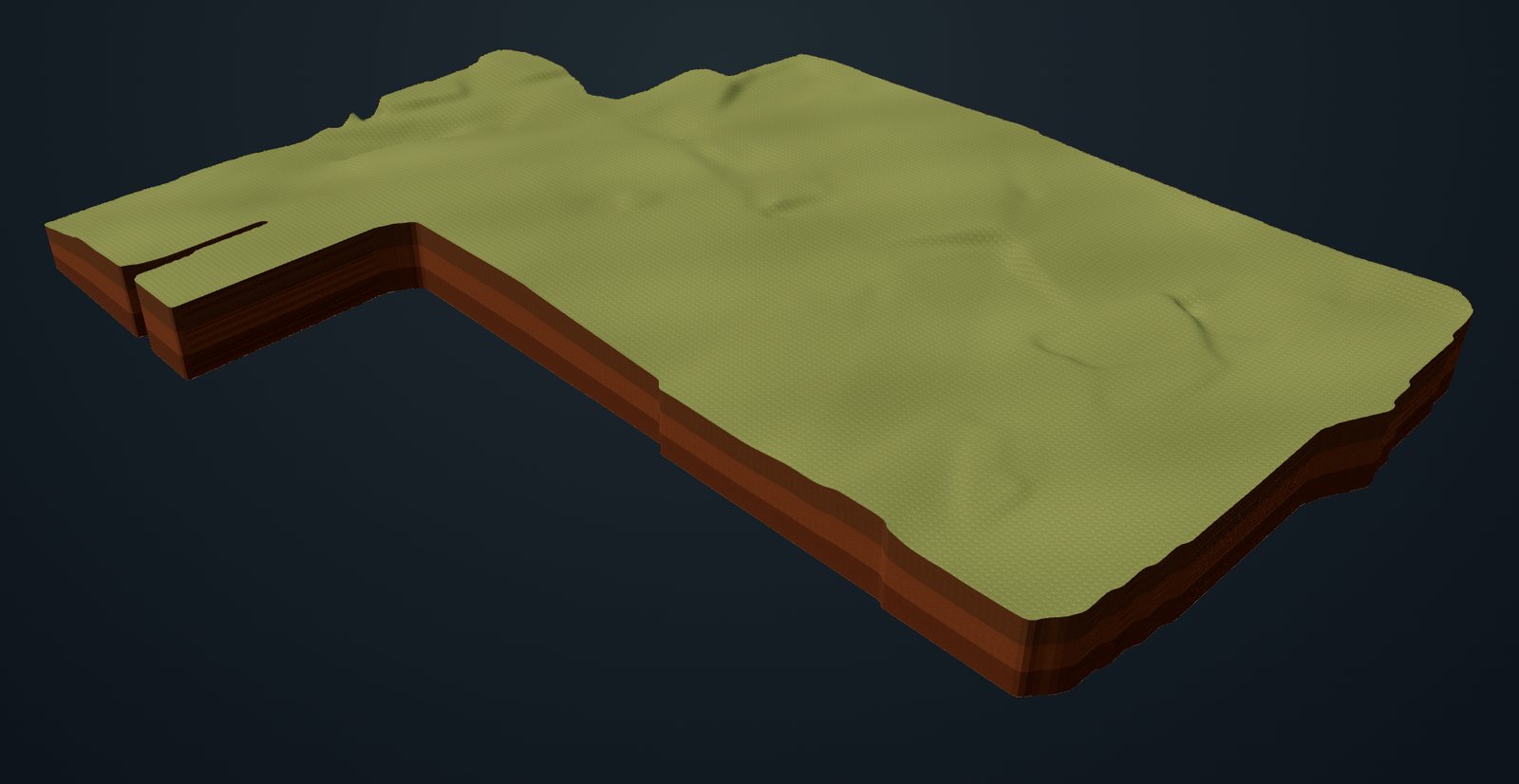

    Flip between Before, After and Cut / Fill. Fix any area and set your sections, shrink and swell.

  4. Send it

    Download the report, export the quantities, or put it into a bid on your letterhead.

Questions

What kind of plans does it need?

A grading plan with existing grades and proposed contours or spot grades. A vector PDF exported from CAD reads best. On a scanned sheet, check the areas and spot grades it found before you use the numbers.

Subgrade or finished grade?

Both. Set your paving, building pad and topsoil sections and switch between them. The 3D model, the heat map and the report all follow.

What if it labels an area wrong?

Click Fix areas in the Earthwork panel and tap the area to switch it, for example a parking lot it called landscape. The quantities update right away.

Can I use my own shrink and swell?

Yes. Set shrink, swell and truck size, and the import, loose yards and truck loads follow.

Does it only do earthwork?

No. It measures asphalt, curb and gutter, building pads, concrete and storm, prices them from your own cost catalog and builds the bid.

Send us your next grading plan.

Upload it, ask for the cut and fill, and have the 3D model, the quantities and the report the same day.

Get started About Takeoff Studio

Examples are real projects. Names, stamps and title blocks are blurred.
